| Business Type | Manufacturer, Supplier, Trader |
| Fitting | Modular Interlocking |
| Color | Black |
| Shape | Hexagonal Honeycomb Structure |
| Click to view more | |
Product Details
Hydraulic Radius
Optimized For Laminar Flow
Cross-sectional Area
High Surface Settling Area
Brand
Nature Eco Tech
MOC
UV-stabilized Polypropylene (PP) or PVC
Media Thickness
1 mm
Material
UV-Stabilized Polypropylene (PP)
Tube Size
50 Mm (side Length)
Media Length
750 Mm - 900 Mm
Tube Width
120 Mm
Installation Angle
60°
Specific Surface Area
80-120 M²/m³
Operating Temperature
Up To 60°C

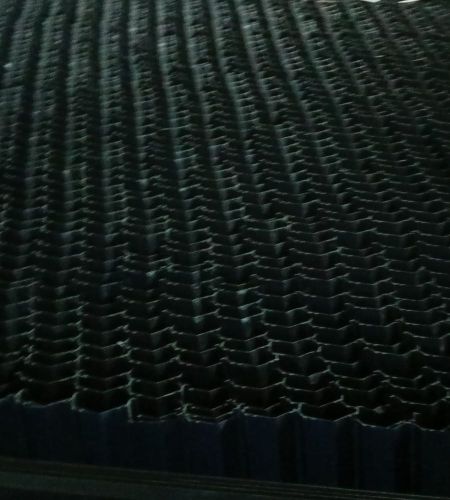

(Tube Settler Media) designed to enhance sedimentation efficiency in STP and ETP clarifiers.
The tube deck media is manufactured from UV-stabilized polypropylene (PP) in a hexagonal cellular structure, providing high specific surface area and improved solid-liquid separation.
Available in 750 mm and 900 mm lengths, the media significantly reduces clarifier footprint while improving removal of TSS and turbidity.
It is ideal for primary clarification, secondary clarification, tertiary polishing units, cooling tower blowdown treatment, and as pre-treatment for MBBR / SAFF biological reactors.
The media is lightweight, corrosion-resistant, easy to install, and requires no energy or moving parts, resulting in low O&M cost and long service life.
FieldValue
| Media Thickness | 1.0 mm (or 0.9–1.2 mm if multiple) |
| Tube Size | 50 mm (side length) / Hexagonal |
| Material | UV-Stabilized Polypropylene (PP) |
| Media Length | 750 mm / 900 mm |
| Tube Width | 120 mm (hexagonal/cellular structure) |
| Installation Angle | 60° |
| Specific Surface Area | 80–120 m²/m³ |
| Operating Temperature | Up to 60°C |
| Application | STP / ETP Clarifiers |
| Country of Origin | Made in India |
